Báscula electrónica para bielas
  • Precise measurement, high repeatability and large weight range
  • Maintenance-free electronics with large, non-reflective 7-segment digital display
  • Rugged design with overload protection
  • Easy handling and problem-free change over

Range of application

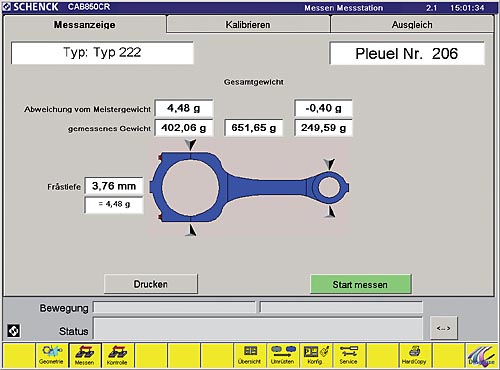

Determining the oscillating and rotating weight and the total weight of passenger vehicle and commercial vehicle connecting-rods. Measurement and display of the absolute weight, deviation from the desired weight as well as classification of the weight components. Application of the weigher in testing, inspection and production checking. In combination with commercially available grinding or milling equipment also usable in small volume production.
Diseño

Design

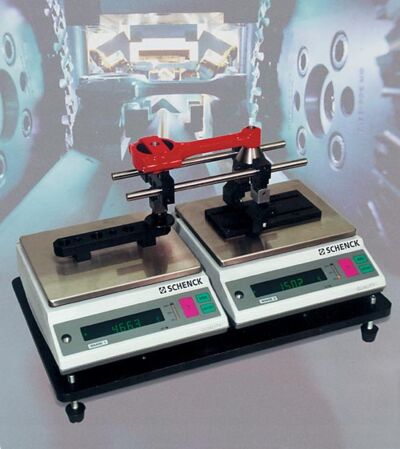

Electronic tandem weigher with independent weighing units. Rugged construction with overload protection, therefore insensitive to impacts during loading. The connecting-rod adapter is adapted to the task: Adapter axes on rails for ease of adjustment in tests as well as adjustable adapter frames of various sizes for finished and rough con-rods in inspection and production. Friction-free connection between weigher and adapter frames, thus high weigher accuracy and repeatability. Expansion through modular construction.
Datos técnicos
Sinopsis de datos técnicos    400 MBPP  400 MBPP-1
Versión básica con bastidores de sujeción    •  •
Interfaz V24 (RS232)    •  •
Entrada de datos, clasificación y módulo de almacenamiento
Bielas de tamaño pequeño y mediano    •
Bielas de tamaño mediano y grande      •
Biela
Peso total  [kg]  10  10
Medición del calibrador  [mm]  110 - 250  180 - 350
Agujero, pie de biela  [mm]  16 - 40  35 - 70
Agujero, cabeza de biela  [mm]  40 - 80  60 - 120
Máquina
Anchura A 3)  [mm]  510  510
Profundidad B 3)  [mm]  335  335
Altura C 3)  [mm]  300  300
Repetibilidad 1)  [g]  ± 0,2 - 0,4  ± 0,2 - 0,4
Desviación de sensibilidad 2)  [g / °K]  ± 0,04  ± 0,04
Resolución  [g]  0,1  0,1
Linealidad  [g]  ± 0,1  ± 0,1
Tiempo de medición  [s]
Temperatura ambiente perm.  [°C]  + 10 - 40  + 10 - 40
Potencia requerida 4)  [V]  230  230
Consumo de energía  [W]  7,5  7,5

Máquina básica  Nº pedido  R0680100.01  R0680200.01
Opciones
Bastidor de sujeción, parte maquinada  Nº pedido  R0680101.01  R0680201.01
Bastidor de sujeción, pieza bruta de fundición  Nº pedido  R0680102.01  R0680202.01
Bastidor de sujeción, parte maquinada 5)  Nº pedido  R0680103.01  R0680203.01

1) Incl. error de inserción dependiendo del peso de la biela
2) En el rango de temperatura de + 10 ... 40° C
3) Datos no vinculantes, en función del equipo respectivo
4) Potencia requerida 230 VAC, 50 Hz; conmutable a 110 VAC 60 Hz
5) Para medición sobre el rango completo (dimensión del calibrador 110-250mm)
